Lester Electrical SSII-650W and SSII-1050W battery chargers
Lester chargers have landed! R&J Batteries are excited to announce a new addition of products to our already extensive range of batteries, lubricants and accessories and we are the official and sole full range importer of Lester Electrical battery chargers in both Australia and New Zealand.
R&J Batteries pride themselves on offering customers high quality, world leading brands. Our range of battery accessories is no exception as we introduce the Summit Series II 1050W (SSII-1050W) and the Summit series II 650W (SSII-650W) to our already comprehensive range of brands.
Lester Electrical specialises in electrical power conversion and storage. Over the past 55 years, they have created products of unrivalled quality, reliability and longevity, even in the most demanding of applications and environments.
Applications |
---|
Golf Cars |
Aerial Work Platforms |
Floor Care Machines |
Industrial Vehicles |
Lift Trucks |
Outdoor Power Equipment |
Lester Summit Series II
The Summit Series II chargers include the comprehensive features and benefits that combine to provide you with the best performance.
Bluetooth – Wireless communication allows you to view the status of the charge cycle, select the active battery profile, upload new profiles, charge between onboard and off-board and download charge history records anytime using smartphones or tablets.
Performance – Proprietary progressive DV/DT™ charge algorithm ensures a precisely charged battery every time. Chargers are built to last and are tested in the most extreme conditions.
Efficiency – Switch mode chargers have best-in-class efficiency and are compliant with the newest CEC and DOE standards.
Cloud connectivity – Push charge histories to the cloud and access the data anywhere any time. Add new profiles to your chargers by pulling information from the cloud.
Expertise – Lester is proudly an employee-owned company, with every member of the team investing in the quality delivered to customers.
Flexibility – Universal AC input and external DC and signal connectors allow for easy customisation and use worldwide.

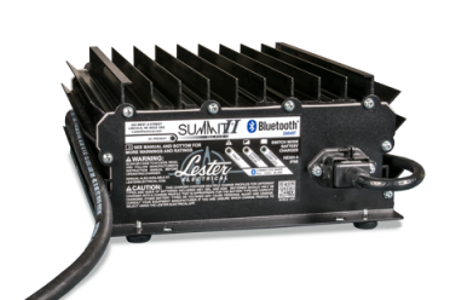

Summit Series II 1050W
AC Input
Voltage range, rated | 100-240 Vac |
Voltage range, rated | 85-265 Vac(<108 Vac: reduced power) |
Protection | Current limit, surge, transient, under voltage, over voltage |
Phase | Single-phase |
Frequency, rated | 50-60 Hz |
Frequency, rated | 45-65 Hz |
Efficiency | > 91% peak, CEC test procedure, 115 Vac, AC and DC losses included |
Current, maximum | < 12 A |
DC Output
Power | 1050 W | ||
Voltage, nominal | 24 Vdc | 36 Vdc | 48 Vdc |
Voltage, maximum | 36 Vdc | 54 Vdc | 72 Vdc |
Current, maximum | 25 A | 25 A | 22 A |
Voltage, min start-up | 10 Vdc | ||
Battery types | Lead-acid (Wet / AGM / Gel), lithium, custom | ||
Protection | Current limit, surge, transient, under voltage, over voltage |

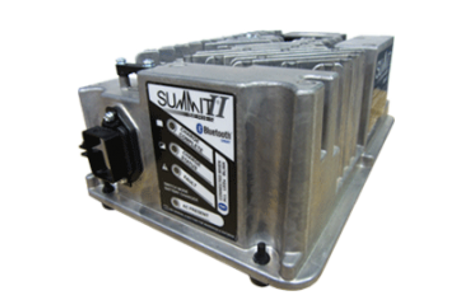

Summit Series II 650W
AC Input
Voltage range, rated | 100-240 Vac |
Voltage rage, operating | 85-265 Vac(<108 Vac: reduced power) |
Frequency, rated | 50-60 Hz |
Frequency, operating | 45-65 Hz |
Phase | Single-phase |
Current, maximum | < 8 A |
Efficiency | > 90% peak, CEC test procedure, 115 Vac, AC and DC losses included |
Protection | Current limit, surge, transient, under voltage, over voltage |
DC Output
Power | 650 W | ||
Voltage, nominal | 24 Vdc | 36 Vdc | 48 Vdc |
Voltage, maximum | 36 Vdc | 54 Vdc | 72 Vdc |
Current, maximum | 27 A | 18 A | 13.5 A |
Voltage, min start-up | 10 Vdc | ||
Battery types | Lead-acid (Wet / AGM / Gel), lithium, custom | ||
Protection | Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage |
Lester Chargers are now available from your local R&J Batteries Store. Please get in touch to discuss our range of Lester Charger.
